ESP32 Develop with Arduino IDE
I've just ESP32 Development Board call Nano32 from Gravitech / MakerAsia.
The new ESP32 WiFi chip from ESPressis System improve over ESP8266 WiFi Module.
see the spec.
http://microcontrollerkits.blogspot.com/2016/10/esp32-development-board-form-gavitech.html

Now ( Oct10 ,2016 ) announced Arduino Core for ESP32 WiFi Chip

https://github.com/espressif/arduino-esp32

The following was the setup environment for ESP32 with Arduino IDE



STEP 1
Download Arduino core for ESP32.



Then Unzip and we will copy all this file to Arduino IDE directory or path later.



STEP 2
If Install Arduino IDE already. Find the path of Arduino IDE Installation directory.

Example
My Computer in C:/Program Files (x86)/Arduino

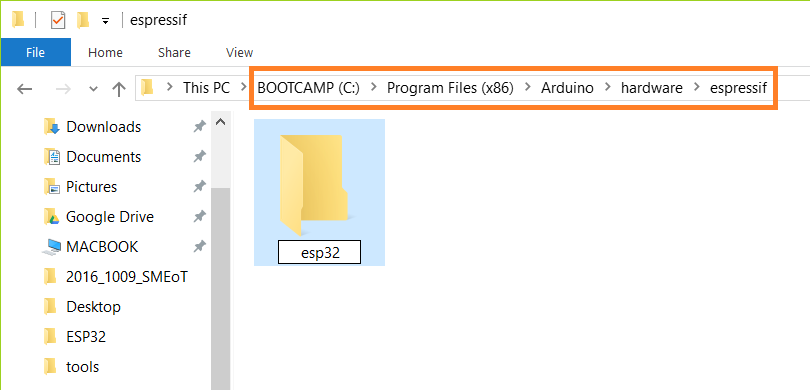

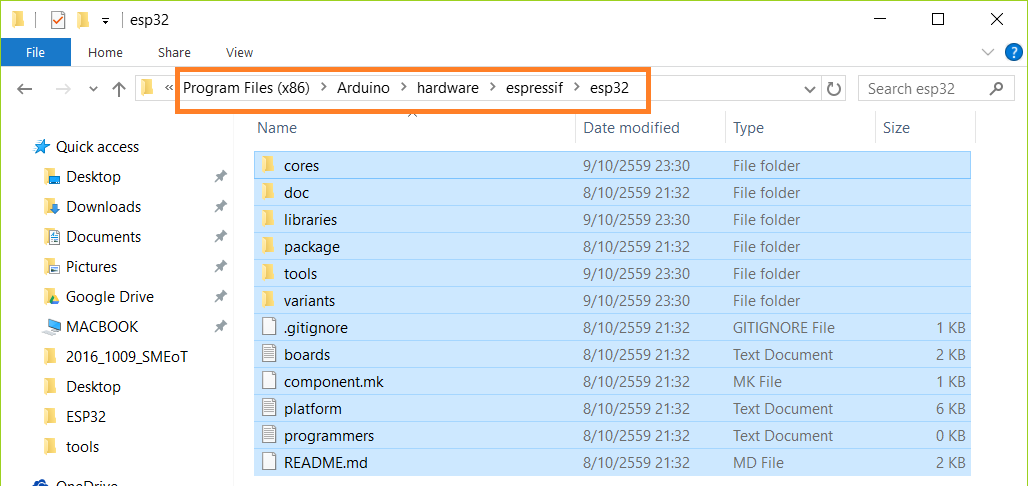

Make New folder name espressif in the hardware directory


and make subfolder in espressif  folder name esp32



Then copy all files from download into this directory. ( esp32 )



or Use Command Line
cd hardware
mkdir espressif
cd espressif
git clone https://github.com/espressif/arduino-esp32.git esp32


STEP 3
Use Python 2.7 Command
if you don't have it. download Python 2.7 https://www.python.org/downloads/

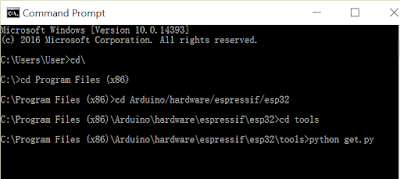

Then Use Command Line
cd esp32/tools
python get.py

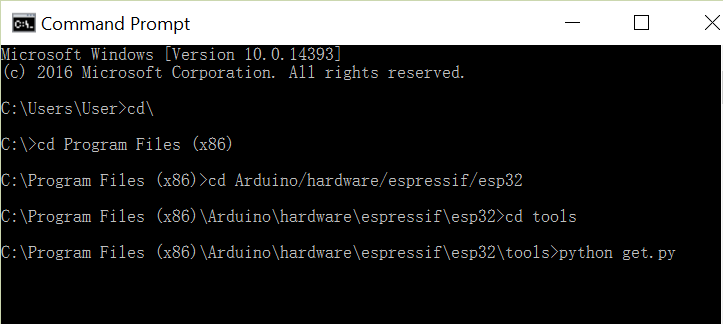

My Example




STEP 4 Open Arduino IDE

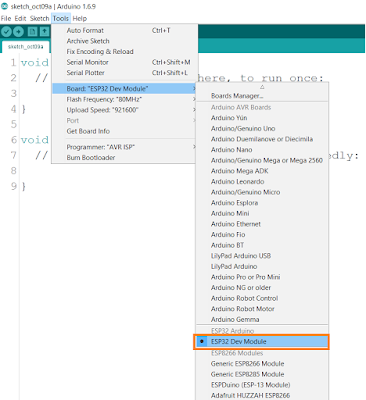

Now, You will have Board ESP32 Dev Module and Select port

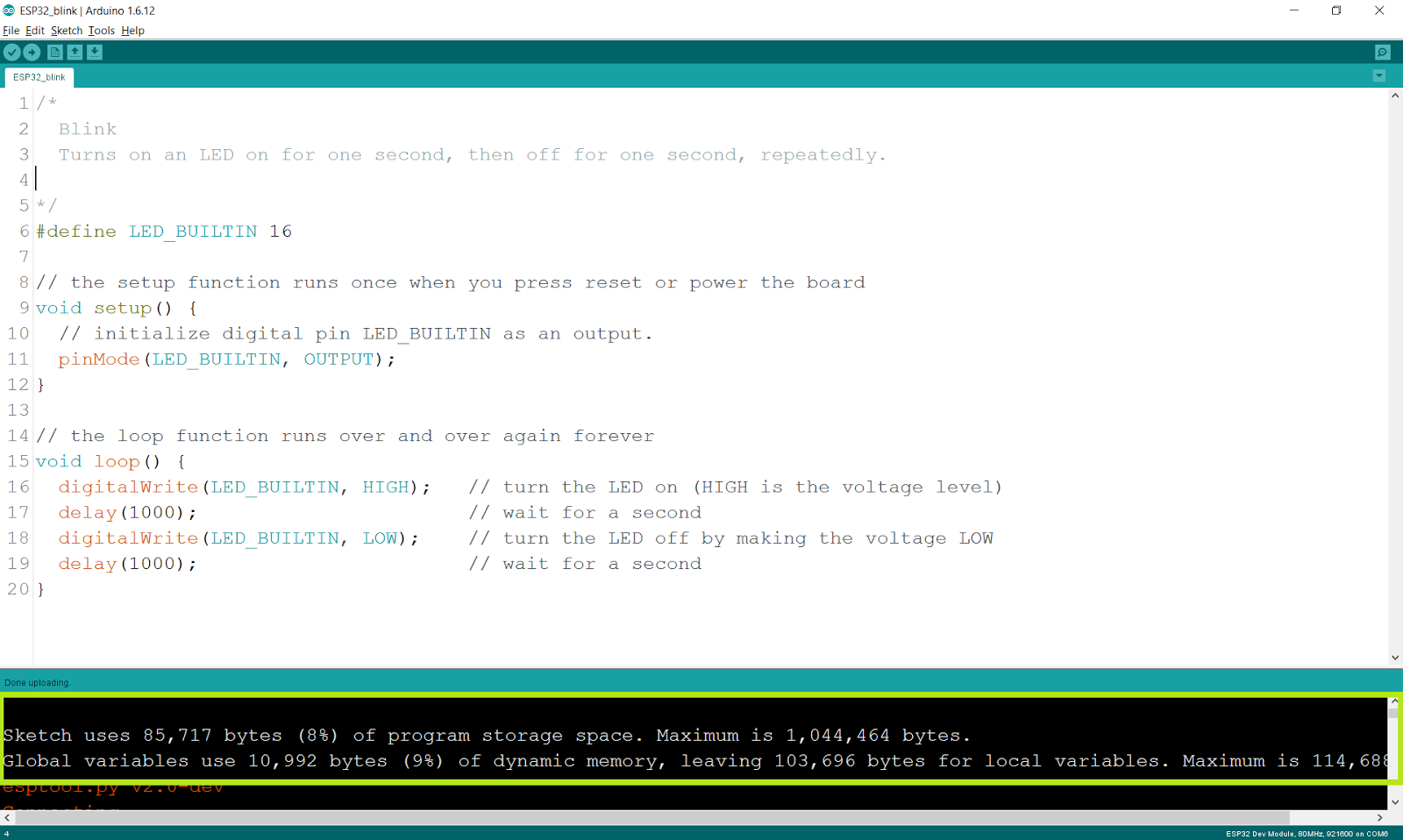

STEP 5 Test Compile and Upload Example Code

Test Blink in Example Code

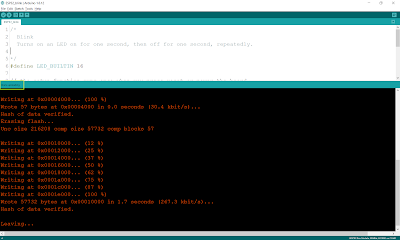

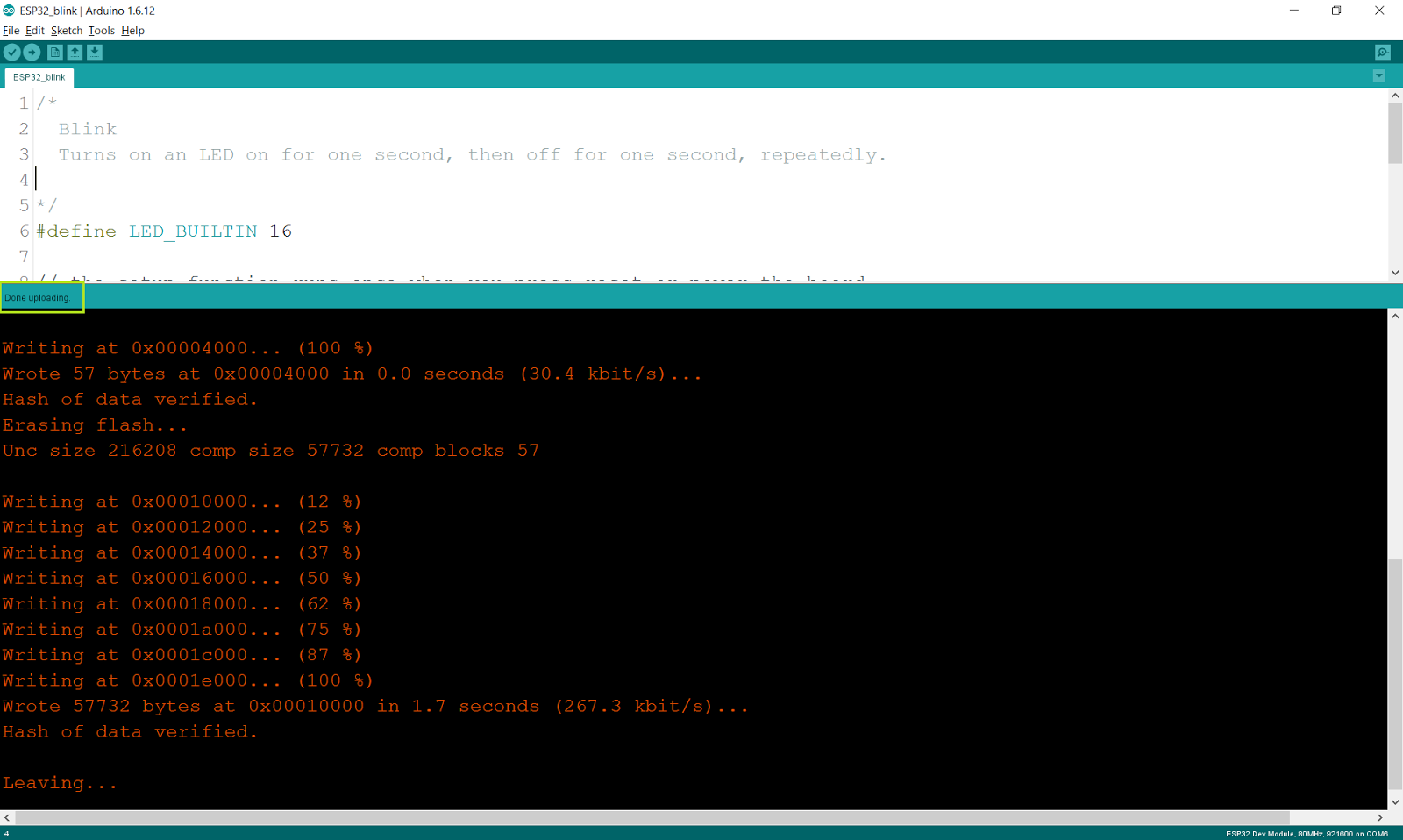

Done Uploading.
Upload code faster than ESP8266 very much.

Reference ( Fixed some bugs ) Thank you for that.
http://www.ayarafun.com/2016/10/arduino-esp32-first-touch/

Nano32 Board
https://www.gravitechthai.com/product_detail.php?d=1470
