Arduino ESP8266 Sent Sensor data to IoT ThingSpeak
( Internet  of Things )

A major component of or rather the very concept, Internet of Things, is about how to connect various devices to the network so that they can both send data and receive commands. Various technologies to address the last mile connectivity, such as Bluetooth, WiFi, NFC, etc... already exist, but most of these are complicated to deploy and often need additional hardware such as a local control server or appliance.

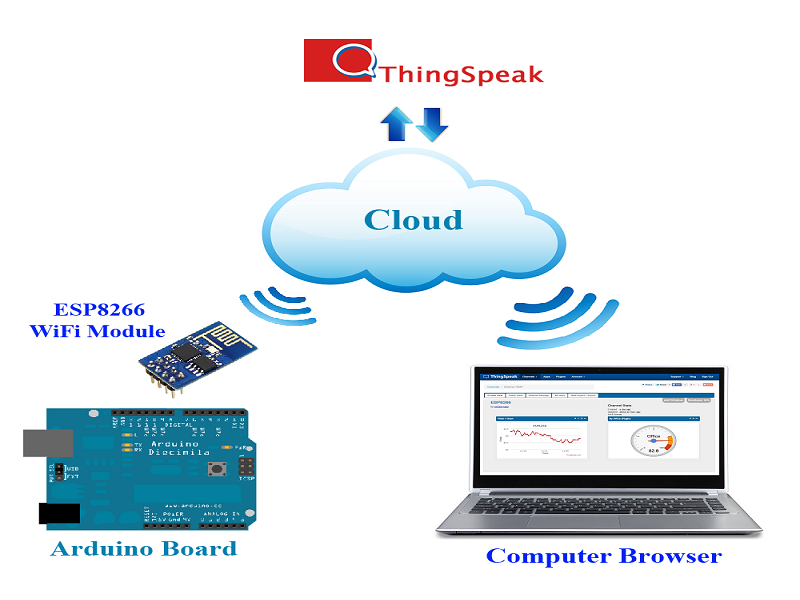

System Diagram
Hardware
  1. Arduino Board or compatible board
  2. ESP8266 WiFi Module ( ESP-01 ) with Flash New Firmware.
  3. DHT11 Temperature / Humidity Sensor

Wiring Diagram

ESP8266 pin CH_PD to 3.3 V
ESP8266 pin UTXD to Arduino Pin10  ( RX1 )
ESP8266 pin URXD to Arduino Pin11  ( TX1 )


ESP8266 Module Pinouts



DHT11 pin 2 (Data ) to Arduino PIN D8



Development Kit Prototype





Development Kits on ebay
http://www.ebay.com/sch/marychanyanuch2012/m.html?




Software
1.ESP8266 firmware
2.Arduino Code
3.ThingSpeak.com
ESP8266 firmware
You need to upload new firmware to your ESP8266 Module.
Download Firmware from ESPDUINO  https://github.com/tuanpmt/espduino

Firmware is in folder espduino-master/esp8266/release/
It has 2 files .
0x00000.bin
0x40000.bin








Arduino Code

Using DHT11 library from: https://github.com/RobTillaart/Arduino

Original Code from
Rock solid esp8266 wifi mqtt, restful client for arduino
http://tuanpm.net/rock-solid-esp8266-wifi-mqtt-restful-client-for-arduino/

But, I've modified to work with Android UNO Board.







What is Thingspeak?
ThingSpeak is an open source “Internet of Things” application and API to store and retrieve data from things using HTTP over the Internet or via a Local Area Network. With ThingSpeak, you can create sensor logging applications, location tracking applications, and a social network of things with status updates.

Then we use ThingSpeak Channel to store and show your sensor data over Internet HTTP.

Getting Start with ThingSpeak  https://thingspeak.com/docs




View Sensor Data through Thingspeak.com

My Data in my place on 16 May 2015 ( 16:10 - 16:30 )




My On line Real Time Data
Visit here https://thingspeak.com/channels/36913






Android ThingSpeak Data Monitor App.



ThingSpeak Data Monitor in Android App.
https://play.google.com/store/apps/details?id=iot.sensor.data.monitor


Reference

Rock solid esp8266 wifi mqtt, restful client for arduino

ThingSpeak
